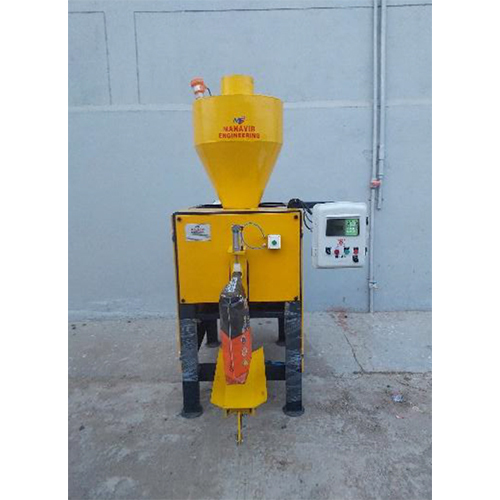

Valve Types Bag Packing Machine

Name: Valve Types Bag Packing Machine
Brand: Mahavir Engineering
Price: 340000 INR
Availability: InStock

Price 340000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Valve Types Bag Packing Machine Specification

Power Supply
Electric

Usage
Industrial

Material
Mild Steel

Feature
Highly Efficient, Durable

Capacity
20-50 Kg

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Human Machine Interface

Drive Type
Electric

Power
3-5 Horsepower (HP)

Voltage
440 Volt (v)

Dimension (L*W*H)
1800 x 1200 x 2700 Millimeter (mm)

Color
Yellow

Warranty
1 Year

Valve Types Bag Packing Machine Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
2 Units Per Month

Delivery Time
1-2 Week

About Valve Types Bag Packing Machine

Valve bag filling machines are designed to efficiently fill powder and granular materials into various types of bags with high speed and precise weighing. They are widely used for packaging products such as plaster, cement, chemical compounds, dry powders, and food-grade granular or powdered materials.

These machines are specifically built for valve-type bags, including Kraft, PP, and PE vented bags. Depending on the requirement, they can handle bag weights ranging from 25 kg to 50 kg. The entire feeding and weighing process is automated, ensuring accuracy and consistency. For higher production capacities, multiple weighing hoppers can be integrated into the system. The weighing operation is controlled through a user-friendly control panel, ensuring precise weight measurement and efficient performance.

Applications
Ideal for packing a wide range of powder materials, including wall putty powder, gypsum powder, construction chemicals, lime powder, refractory materials, mineral powders, white cement, cement, fly ash, dry materials, tile adhesive, china clay, POP (Plaster of Paris) powder, and similar products.

Specifications:

System	Valve Type Bagging Machine
Capacity	Max : 50 kg , Min : 20 Kg
Accuracy	+/-0.2%
Number of Filling	2-3 bag/min Powder, Depend on Material
Filling Valve	Screw or Motorized & Pneumatically operated Gate
Features of the Control Panel	Coarse & Fine set, weight set, bag count, LED Display, start
Weighing Sensor	stop control Load Cell
Dimension	L - 1800 mm X W - 1200 mm X H - 2700mm
Power	440 V AC, 50 Hz, 3-5 HP
Air Supply	5- 6 kg / cm²

Grab Yours now and capitalise on our clearance offer for the Valve Types Bag Packing Machine, a pivotal solution designed for industrial usage. Manufactured from noble mild steel and finished in a standout yellow, this outstanding machine features a 3-5 HP electric drive with 440V for robust performance. The Human Machine Interface ensures seamless semi-automatic control, while its capacity spans 20-50 kg. With a dimension of 1800 x 1200 x 2700 mm, it's highly efficient and durable. Backed by a 1-year warranty, this Indian-manufactured marvel is perfect for forward-thinking enterprises.

Optimized Usage for Industrial Needs

The Valve Types Bag Packing Machine is extensively used for industrial bag packing operations, accommodating a versatile capacity of 20-50 kg. Its use type caters to semi-automatic processes, ideal for fast-paced workflows. Simply load the bag, set your desired parameters via the Human Machine Interface, and let the machine efficiently fill each bag. Designed with user-friendly controls, this equipment ensures both ease of operation and consistent output.

Seamless Supply and Swift Delivery

Benefit from quick dispatch when placing your order for this Valve Types Bag Packing Machine. Available at the lowest price directly from the manufacturer and supplier in India, supply is ensured through FOB Port delivery for global accessibility. Samples are available upon request, and typical delivery times remain minimal, ensuring you can start production promptly without delays. Capitalise on unbeatable supply reliability for all your industrial packaging projects.

FAQ's of Valve Types Bag Packing Machine:

Q: How does the Valve Types Bag Packing Machine enhance industrial packing operations?

A: This machine streamlines the bag packing process by automating filling tasks for 20-50 kg bags, reducing manual labor while increasing efficiency and consistency in industrial environments.

Q: What is the recommended process for operating this bag packing machine?

A: Simply load the packaging material, input your settings via the Human Machine Interface, and allow the semi-automatic system to handle the filling. The electric drive ensures smooth and reliable performance throughout each cycle.

Q: When is the machine best suited for use?

A: It is ideally used in continuous, high-volume industrial settings where precise and efficient packing of large quantities is essential, especially when durability and reliability are top priorities.

Q: Where is this machine manufactured and supplied from?

A: The Valve Types Bag Packing Machine is manufactured and supplied in India, with availability for both local and international clients through a reliable FOB Port system.

Q: What makes this packing machine highly efficient and durable?

A: Constructed from noble mild steel and powered by a robust 3-5 HP electric drive, the machine is designed for longevity, consistent output, and minimal maintenance requirements.
