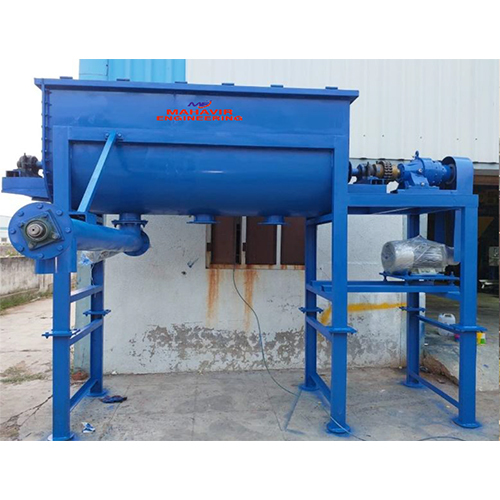

Ribbon Blender & Plow Mixer

Name: Ribbon Blender & Plow Mixer
Brand: Mahavir Engineering
Price: 350000 INR
Availability: InStock

Price 350000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Ribbon Blender & Plow Mixer Specification

Voltage
220-240 Volt (v)

Frequency
50 Hertz (HZ)

Material
Mild Steel

Capacity
1000 Kg

Automatic Grade
Semi-Automatic

Cooling System
Air Cooling

Power(W)
10-15 Horsepower (HP)

Color
Blue

Ribbon Blender & Plow Mixer Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Ribbon Blender & Plow Mixer

Ribbon blenders are industrial mixers designed to efficiently blend and powder solids through a gentle shuffling action. They consist of a central shaft fitted with an agitator ribbon inside a semi-cylindrical trough. During operation, two ribbons move in opposite directions-one moves the material slowly, while the other moves it more rapidly-creating turbulence that ensures uniform mixing. Continuous ribbon alignment is not necessary, as the counteracting motion itself promotes thorough blending. Depending on operational needs, the trough can be open or lightly covered for ambient mixing, or heavily reinforced and sealed to operate under vacuum or pressure. Ribbon blenders are especially effective for thin pastes and powders with poor flow properties.

Construction

Ribbon blenders are available in three main designs: U-shaped troughs, shells, and spiral agitators. The helical ribbons, also called spirals, are welded onto the agitator shaft. Most ribbon blenders use a "double" helical design, featuring both internal and external ribbons. Counteracting blades are incorporated to break lumps, handle aggregates, and provide high shear when needed. The system is powered by an electric motor connected to a gearbox, typically rated between 10 HP and 15 HP for a 1,000 kg batch, with specific power requirements ranging from 3 to 12 kW/m² depending on the material being mixed. A sealing arrangement around the shaft prevents material leakage, and feed hoppers and bottom discharge spouts facilitate loading and unloading. Contact parts are made of mild steel or stainless steel (SS 304, 316, or 316L), available in standard CGMP or fully customized configurations.

Applications: Ribbon blenders are widely used in cement sand, dry mortar, tile adhesive, block-joining adhesive, tile grout, wall putty, and white cement manufacturing.

Discover the ravishing Ribbon Blender & Plow Mixer, an illustrious machine crafted from mild steel, finished in a vibrant blue. This trending mixer, available at the best price, features a robust 10-15 HP motor and operates efficiently on 220-240V with a 50 Hz frequency. Boasting a 1000 kg capacity and a semi-automatic, air-cooled design, it's the unprecedented choice for bulk mixing. Proudly made in India by a renowned manufacturer and supplier, elevate your workflow-try it now and set new standards of productivity!

Versatile Applications of Ribbon Blender & Plow Mixer

The Ribbon Blender & Plow Mixer is widely recognized for its versatility across multiple sectors. Used as an industrial blending solution, it excels in industries such as food processing, pharmaceuticals, chemicals, and plastics. Its application surface includes mixing powders, granules, and other bulk materials, ensuring uniform consistency. This illustrious mixer is indispensable for tasks requiring gentle or vigorous blending, delivering unmatched efficiency and reliability across various manufacturing operations.

FOB Port, Packaging, and Supply at Unbeatable Value

Benefit from the lowest price on this advanced mixer, with Express Shipping available from major Indian FOB ports. The Ribbon Blender & Plow Mixer is securely packaged in industrial-grade packaging to ensure safe transit and handling. With a robust supply ability, quick quotations are provided for any order size, guaranteeing rapid fulfillment. Rely on our efficient logistics and competitive offers to meet your production needs promptly and reliably.

FAQ's of Ribbon Blender & Plow Mixer:

Q: How does the Ribbon Blender & Plow Mixer operate for effective mixing?

A: The mixer uses a combination of ribbon and plow movements to uniformly blend materials within its spacious 1000 kg capacity drum, ensuring thorough mixing of powders and granules.

Q: What are the key usage benefits of this mixer in industrial applications?

A: This machine offers unprecedented efficiency, gentle yet thorough mixing, compatibility with multiple materials, and easy operation, making it valuable for food, pharmaceutical, chemical, and plastic manufacturing.

Q: Where can the Ribbon Blender & Plow Mixer be installed?

A: It is designed for easy installation in industrial settings using standard 220-240V power, suitable for both large-scale and mid-size manufacturing facilities across India and beyond.

Q: What is the typical process for ordering and delivery?

A: Obtain a quotation quickly, enjoy Express Shipping from leading Indian FOB ports, and receive your mixer in secure packaging, with flexible supply to meet varying order sizes.

Q: When is it advisable to choose the semi-automatic grade option?

A: Opt for the semi-automatic model when you require enhanced control over mixing speeds and batch durations, while maintaining efficiency for medium to large production volumes.
